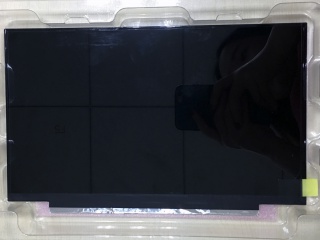

| PartNumber | G116HAN01.0 |
| Znamka | AUO |
| Velikost | 11.6 |
| Aplikacija | Industrial |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka | AUO |
| velikost diagonale | 11.6 inch |
| slikovnih pik | 1920(RGB)×1080 [FHD] 190PPI |
| aktivno območje | 256.32(H)×144.18(V) mm |
| območje okvirja | - |
| svetilnost | 300 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 52% NTSC |
| utež | 200g (Max.) |
| hitrost sličic | 60Hz |
| tip vmesnika | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | G116HAN01.0 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 268(H)×168.5(V) ×3(D) mm |
| zdravljenje | Hard coating (3H) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| način delovanja | AHVA, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 15K hours , With LED Driver |
| namenjen za | Industrial |
| plošča na dotik | Without |
