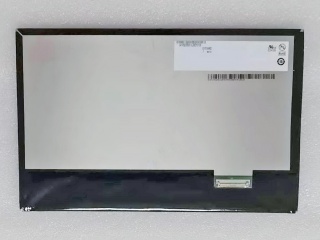

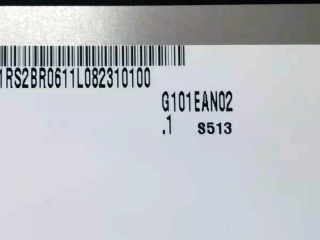

| PartNumber | G101EAN02.1 |
| Znamka | AUO |
| Velikost | 10.1 |
| Aplikacija | Industrial |
| Resolucija | 1280×800 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | AUO |
| velikost diagonale | 10.1 inch |
| slikovnih pik | 1280(RGB)×800 [WXGA] 149PPI |
| aktivno območje | 216.96(H)×135.6(V) mm |
| območje okvirja | - |
| svetilnost | 400 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 50% NTSC |
| utež | 195g (Max.) |
| hitrost sličic | 60Hz |
| tip vmesnika | LVDS (1 ch, 8-bit) , 40 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| model | G101EAN02.1 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 227.72(H)×147.8(V) ×4.8(D) mm |
| zdravljenje | Hard coating |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| odzivni čas | 29 (Typ.)(Tr+Td) |
| način delovanja | AHVA, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 30K hours , With LED Driver |
| namenjen za | Industrial |
| plošča na dotik | Without |
