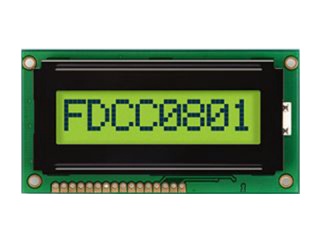

| PartNumber | FC0801A01-FHYYBW-51SK |
| Znamka | Fordata |
| Velikost | 2.3 |
| Aplikacija | Instruments & Me |
| Resolucija | 5×8 |
| Sestava | STN-LCD, LCM |
| Svetlost | |
| CR | 10:1 |
| Barve | Monochrome |
| Osvetlitev ozadja | YG-LED |
| Vmesnik | 8-bit |
| znamka | Fordata |
| model | FC0801A01-FHYYBW-51SK |
| velikost diagonale | 2.3 inch |
| vrsta | STN-LCD, LCM |
| format char | 5×8 dots |
| velikost pisave | 6.45×10.75 mm |
| višina pisave | 7.15×10.75 mm |
| aktivno območje | 56.5(H)×10.75(V) mm |
| obris dim. | 84(H)×44(V) ×13.5(D) mm |
| območje okvirja | 61.0(H)×15.8(V) mm |
| zdravljenje | - |
| svetilnost | - |
| kontrastno razmerje | 10:1 (Typ.) (TM) |
| smer pogleda | 6 o'clock |
| odzivni čas | 150/150 (Typ.)(Tr/Tf) |
| vidni kot | - |
| način delovanja | STN, Yellow/Green (Positive), Transflective |
| podpira barvo | Monochrome |
| Izvor svetlobe | YG-LED , 20K hours , W/O Driver |
| utež | - |
| namenjen za | Instruments & Meters |
| hitrost sličic | - |
| plošča na dotik | Without |
| tip vmesnika | 8-bit parallel , 16 pins Pad |
| napajanje | 5.0V (Typ.) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
