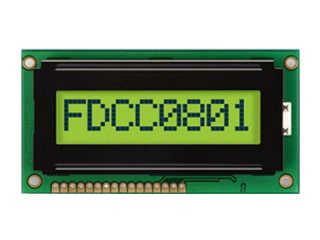

| PartNumber | FC0801A01-FHYYBW-51LR |
| Znamka | Fordata |
| Velikost | 2.3 |
| Aplikacija | Instruments & Me |
| Resolucija | 8×13 |
| Sestava | STN-LCD, LCM |
| Svetlost | |
| CR | 10:1 |
| Barve | Monochrome |
| Osvetlitev ozadja | YG-LED |
| Vmesnik | 8-bit |
| znamka plošče | Fordata |
| panelni model | FC0801A01-FHYYBW-51LR |
| velikost plošče | 2.3" |
| vrsta plošče | STN-LCD, LCM |
| format prikaza | 8 characters × 1 lines, 3PPI |
| format pisave | 5×8 dots |
| velikost znakov | 6.45×10.75(W×H) mm |
| višina znakov | 7.15×10.75(W×H) mm |
| prikazno območje | 56.5(W)×10.75(H) mm |
| odprtina okvirja | 61.0(W)×15.8(H) mm |
| velikost obrisa | 84(W)×44(H) ×13.5(D) mm |
| površino | - |
| svetlost | - |
| kontrastno razmerje | 10:1 (Typ.) (TM) |
| vidni kot | - |
| način prikaza | STN, Yellow/Green (Positive), Transflective |
| najboljši pogled na | 6 o'clock |
| odzivni čas | 150/150 (Typ.)(Tr/Tf) |
| barve zaslona | Monochrome |
| tip svetilke | YG-LED , 20K hours , Without Driver |
| pogostost | - |
| zaslon na dotik | Without |
| teža plošče | - |
| aplikacija | Instruments & Meters |
| signalni vmesnik | 8-bit parallel , 16 pins Pad |
| vhodna napetost | 5.0V (Typ.) |
| okolju | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
