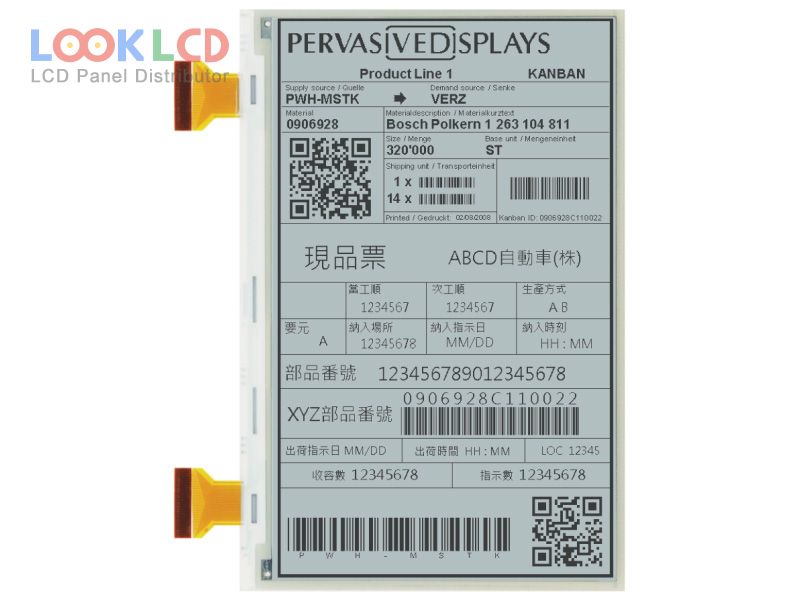

| PartNumber | EW074AT012 |
| Znamka | PDI |
| Velikost | 7.4 |
| Aplikacija | EPT |
| Resolucija | 480×800 |
| Sestava | EPD |
| Svetlost | |
| CR | |
| Barve | Monochrome |
| Osvetlitev ozadja | No B/L |
| Vmesnik | Parallel Data |
| znamka plošče | PDI |
| panelni model | EW074AT012 |
| vrsta plošče | EPD , EPD |
| velikost plošče | 7.4 inch |
| resolucija | 480×800 , WVGA |
| aktivno območje | 96.96×161.6 mm |
| oris | 111×169×1.4 mm |
| površino | Antiglare |
| svetlost | |
| kontrastno razmerje | 7:1 (Typ.)(Reflective) |
| barve zaslona | Monochrome (1-bit) |
| vidni kot | |
| signalni vmesnik | Parallel Data (8-bit), 80 pins |
| vhodna napetost | 3.3V (Typ.)(VDD) |
| aplikacija | EPT |
