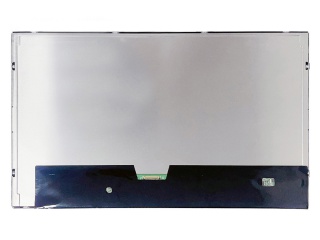

| PartNumber | EV156FHM-N10-5850 |
| Znamka | BOE |
| Velikost | 15.6 |
| Aplikacija | Industrial |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka | BOE |
| model | EV156FHM-N10-5850 |
| velikost diagonale | 15.6 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1920(RGB)×1080 [FHD] 141PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 344.16(H)×193.59(V) mm |
| obris dim. | 363.8(H)×215.9(V) ×9.9(D) mm |
| območje okvirja | 348.2(H)×197.6(V) mm |
| zdravljenje | Antiglare |
| svetilnost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| podpira barvo | 16.7M 45% NTSC |
| Izvor svetlobe | WLED [8S4P] , 50K hours , With LED Driver |
| utež | 850g (Max.) |
| namenjen za | Industrial |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C |
