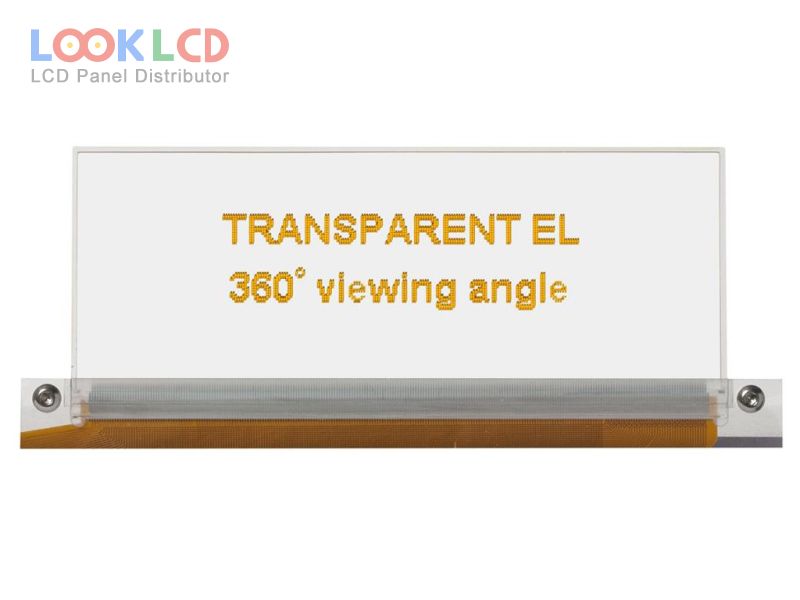

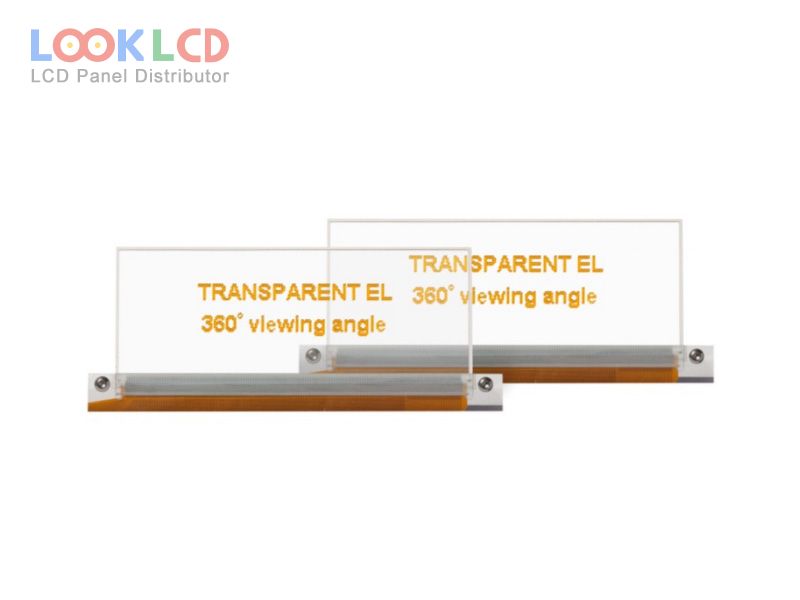

| PartNumber | ELT160.80.50 |
| Znamka | Lumineq |
| Velikost | 3.5 |
| Aplikacija | TPD |
| Resolucija | 160×80 |
| Sestava | EL |
| Svetlost | 90 |
| CR | |
| Barve | Mono(Yellow) |
| Osvetlitev ozadja | self |
| Vmesnik | Parallel Data |
| znamka plošče | Lumineq |
| panelni model | ELT160.80.50 |
| vrsta plošče | EL , EL |
| velikost plošče | 3.5 inch |
| resolucija | 160×80 |
| aktivno območje | 79.9×39.9 mm |
| oris | 153.4×134.5×12.8 mm |
| površino | |
| svetlost | 90 cd/m² (Typ.) |
| kontrastno razmerje | |
| barve zaslona | Mono(Yellow) (1-bit) |
| vidni kot | 89/89/89/89 (Typ.)(L/R/U/D) |
| pogostost | 240Hz |
| signalni vmesnik | Parallel Data (4-bit), 20 pins |
| vhodna napetost | 5.0/12V (Typ.)(Vl/Vh) |
| rohs: | |
| aplikacija | TPD |
