| PartNumber | COM70H7M44UTC |
| Znamka | Ortustech |
| Velikost | 7.0 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 800×480 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 900:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | 7S2P |
| Vmesnik | LVDS |
| proizvajalec | Ortustech |
| ime modela | COM70H7M44UTC |
| velikost zaslona | 7.0 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×480 (WVGA) 133PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 152.4 × 91.44 (H×V) |

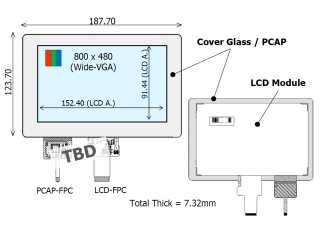

| obris (mm) | 187.7 × 123.7 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Hard coating (3H) |
| svetilnost | 900 cd/m² (Typ.) |
| kontrastno razmerje | 900 : 1 (Typ.) (TM) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10) |
| odgovor | 50 (Typ.)(Tr+Tf) ms |
| dober pogled na | Symmetry |
| način dela | VA, Normally Black, Transflective |
| barvna globina | 262K/16.7M 50% NTSC |
| osvetlitev ozadja | 7S2P WLED , 50K hours , No Driver |
| masa | TBD |
| uporablja za | Industrial Outdoor High Brightness |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | PCAP |
| vrsto signala | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
