| PartNumber | COM70H7M40ULC |
| Znamka | Ortustech |
| Velikost | 7.0 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 700:13:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | 7S2P |
| Vmesnik | |
| znamka plošče | Ortustech |
| velikost plošče | 7.0" |
| resolucija | 800(RGB)×480, WVGA, 133PPI |

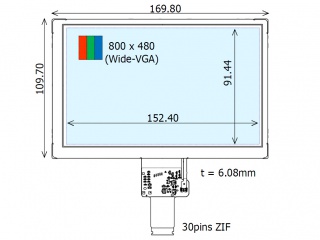

| prikazno območje | 152.4(W)×91.44(H) mm |
| velikost obrisa | 169.8(W)×109.7(H) ×6.11(D) mm |
| svetlost | 800 cd/m² (Typ.) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 262K/16.7M 50% NTSC |
| pogostost | 60Hz |
| utež | TBD |
| panelni model | COM70H7M40ULC |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| površino | Hard coating (3H) |
| kontrastno razmerje | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| način prikaza | VA, Normally Black, Transflective |
| odzivni čas | 50 (Typ.)(Tr+Td) |
| tip svetilke | 7S2P WLED , 50K hours , Without Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial Outdoor High Brightness Automotive Display |
| A070VW05 V2 | AUO | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LMS700JF04-0 | Samsung | 7.0 | 1024×600 |
| PM070WU1 | E Ink | 7.0 | 800×480 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
