| PartNumber | COM70H7M24ULC |
| Znamka | Ortustech |
| Velikost | 7.0 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 700:13:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | Ortustech |
| model | COM70H7M24ULC |
| velikost diagonale | 7.0 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 800(RGB)×480 [WVGA] 133PPI |
| konfiguracijo | RGB Vertical Stripe |

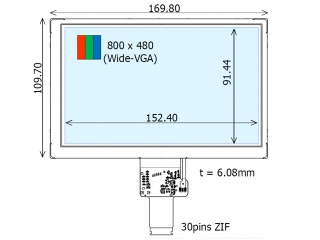

| aktivno območje | 152.4(H)×91.44(V) mm |
| obris dim. | 169.8(H)×109.7(V) ×6.11(D) mm |
| območje okvirja | - |
| zdravljenje | Hard coating (3H) |
| svetilnost | 790 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| smer pogleda | Symmetry |
| odzivni čas | 60/40 (Max.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10) |
| način delovanja | VA, Normally Black, Transflective |
| podpira barvo | 262K/16.7M 50% NTSC |
| Izvor svetlobe | WLED [8S2P] , 100K hours , W/O Driver |
| utež | 170g (Typ.) |
| namenjen za | Industrial Outdoor High Brightness Automotive Display |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | LVDS (1 ch, 6/8-bit) , 30 pins FPC |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 6.8G (66.64 m/s²) |
