| PartNumber | COM35H3P58ULC |
| Znamka | Ortustech |
| Velikost | 3.5 |
| Aplikacija | Handheld & PDA |
| Resolucija | 320×240 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 700:12:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Parallel |
| znamka | Ortustech |
| model | COM35H3P58ULC |
| velikost diagonale | 3.5 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 320(RGB)×240 [QVGA] 115PPI |
| konfiguracijo | RGB Vertical Stripe |

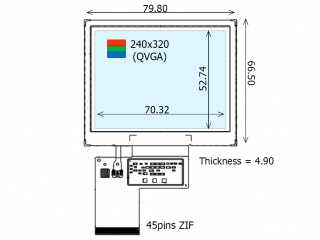

| aktivno območje | 70.32(H)×52.74(V) mm |
| obris dim. | 79.8(H)×66.5(V) ×5.1(D) mm |
| območje okvirja | - |
| zdravljenje | Hard coating (2H) |
| svetilnost | 600 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| smer pogleda | Symmetry |
| odzivni čas | 60/40 (Max.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10) |
| način delovanja | VA, Normally Black, Transflective |
| podpira barvo | 16.7M 50% NTSC |
| Izvor svetlobe | WLED [3S2P] , 50K hours , W/O Driver |
| utež | TBD |
| namenjen za | Handheld & PDA |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
