| PartNumber | COM104T9M10ERS |
| Znamka | Ortustech |
| Velikost | 10.4 |
| Aplikacija | Industrial |
| Resolucija | 800×600 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | Ortustech |
| model | COM104T9M10ERS |
| velikost diagonale | 10.4 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 800(RGB)×600 [SVGA] 96PPI |
| konfiguracijo | RGB Vertical Stripe |

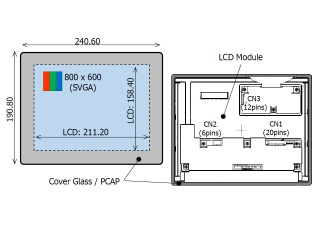

| aktivno območje | 211.2(H)×158.4(V) mm |
| obris dim. | 240(H)×190.8(V) mm |
| svetilnost | 480 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 40 (Max.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Min.)(CR≥10) |
| način delovanja | FFS, Normally Black, Transmissive |
| podpira barvo | 262K/16.7M 50% NTSC |
| Izvor svetlobe | WLED , 70K hours , With LED Driver |
| utež | - |
| namenjen za | Industrial |
| hitrost sličic | 60Hz |
| plošča na dotik | PCAP |
| tip vmesnika | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
