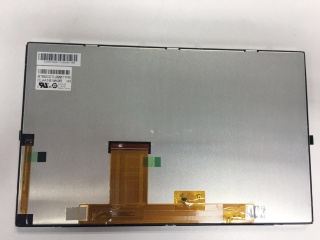

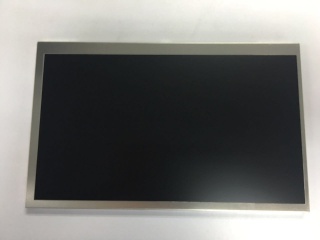

| PartNumber | CLAA101WK06 XN |
| Znamka | CPT |
| Velikost | 10.1 |
| Aplikacija | Automotive Display |
| Resolucija | 1280×720 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 900:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | 6S5P |
| Vmesnik | LVDS |
| znamka plošče | CPT |
| panelni model | CLAA101WK06 XN |
| velikost plošče | 10.1" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1280(RGB)×720, WXGA, 144PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 224.64(W)×126.36(H) mm |
| odprtina okvirja | 227.64(W)×129.36(H) mm |
| velikost obrisa | 238.8(W)×148.05(H) ×8.7(D) mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 600 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | HFFS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| barve zaslona | 262K/16.7M 70% NTSC |
| tip svetilke | 6S5P WLED , 30K hours , Without Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| teža plošče | 430g (Typ.) |
| aplikacija | Automotive Display |
| signalni vmesnik | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| vhodna napetost | 3.3/12.4/24.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| okolju | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
