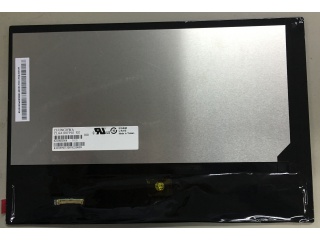

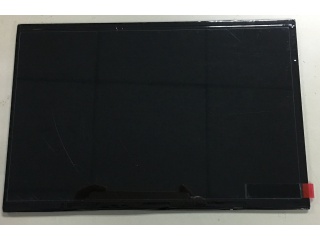

| PartNumber | CLAA101FP0J XG |
| Znamka | CPT |
| Velikost | 10.1 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1920×1200 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 750:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | CPT |
| panelni model | CLAA101FP0J XG |
| velikost plošče | 10.1" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1920(RGB)×1200, WUXGA, 225PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 216.576(W)×135.36(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 228.99(W)×154.4(H) ×5.5(D) mm |
| površino | Antiglare, Hard coating |
| svetlost | 1200 cd/m² (Typ.) |
| kontrastno razmerje | 750:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | HFFS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| barve zaslona | 16.7M 50% NTSC |
| tip svetilke | WLED , 15K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| teža plošče | TBD |
| aplikacija | Industrial Outdoor High Brightness |
| signalni vmesnik | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -10 ~ 70 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
