| PartNumber | CLAA101FP05 |
| Znamka | CPT |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1920×1200 |
| Sestava | LCM |
| Svetlost | 370 |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | CPT |
| panelni model | CLAA101FP05 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1920(RGB)×1200 , WUXGA |
| način prikaza | HFFS, Normally Black, Transmissive |
| aktivno območje | 216.576×135.36 mm |
| oris | 227.72×148.65×4.55 mm |
| površino | Hard coating |
| svetlost | 370 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193150% |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |

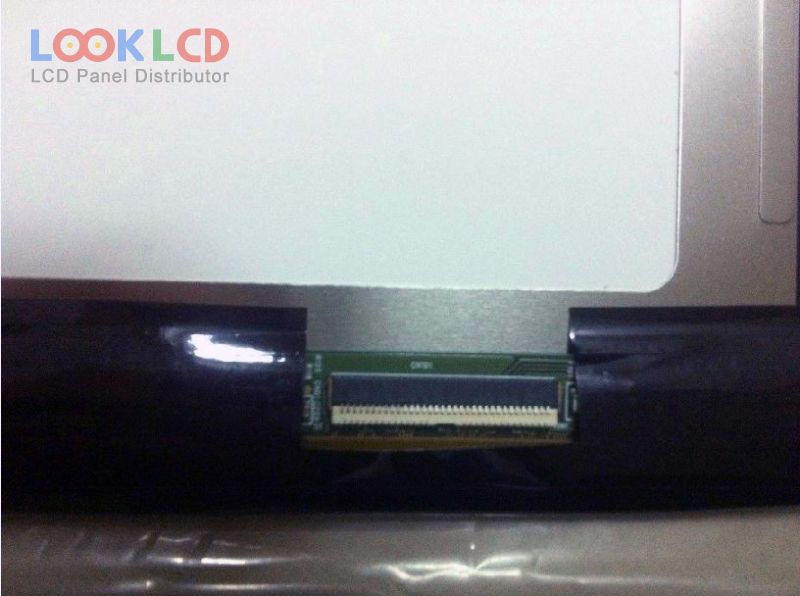

| signalni vmesnik | MIPI (4 data lanes), 34 pins |
| vhodna napetost | 3.7V (Typ.) |
| aplikacija | PAD |
