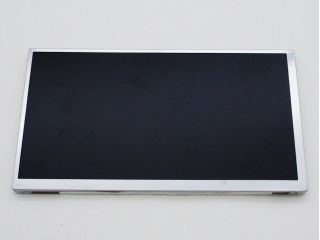

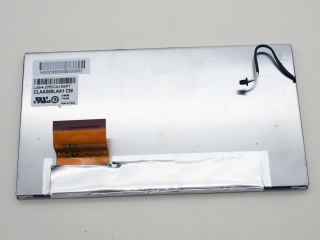

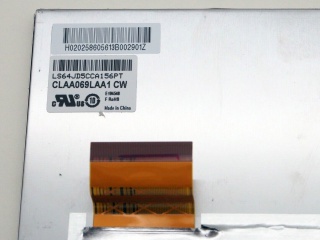

| PartNumber | CLAA069LAA1CW |
| Znamka | CPT |
| Velikost | 7.0 |
| Aplikacija | Automotive Display |
| Resolucija | 800×480 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| proizvajalec | CPT |
| ime modela | CLAA069LAA1CW |
| velikost zaslona | 7.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×480 (WVGA) 134PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 156.6 × 81.6 (H×V) |
| obris (mm) | - |
| vidni kot | 75/75/60/70 (Typ.)(CR≥10) |
| odgovor | 20 (Typ.)(Tr+Td) ms |
| dober pogled na | 6 o'clock |
| način dela | TN, Normally White, Transmissive |
| barvna globina | 262K |
| osvetlitev ozadja | WLED |
| masa | - |
| uporablja za | Automotive Display |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
