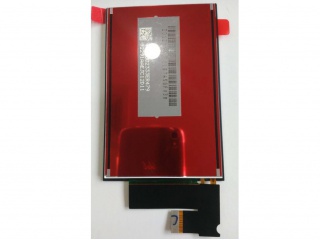

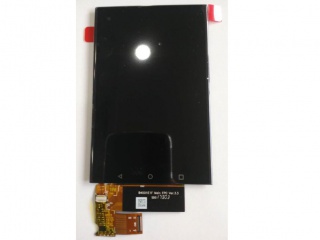

| PartNumber | BV045FHM-L00-1S00 |
| Znamka | BOE |
| Velikost | 4.5 |
| Aplikacija | Mobile Phone |
| Resolucija | 1080×1620 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka | BOE |
| model | BV045FHM-L00-1S00 |
| velikost diagonale | 4.5 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1080(RGB)×1620 434PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 63.115(H)×94.673(V) mm |
| obris dim. | 68.14(H)×104.97(V) ×3(D) mm |
| območje okvirja | - |
| zdravljenje | Anti Fingerprint |
| svetilnost | 580 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 50 (Max.)(G to G) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| podpira barvo | 16.7M 100% sRGB |
| Izvor svetlobe | WLED [8S2P] , 15K hours , W/O Driver |
| utež | TBD |
| namenjen za | Mobile Phone |
| hitrost sličic | 60Hz |
| plošča na dotik | In-Cell Touch |
| Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| ACX435AKN-7 | SONY | 4.5 | 800×1280 |
| BTL454885-W698L | BOE | 4.5 | 480×854 |
| BV045WVM-N00 | BOE | 4.5 | 480×800 |
| H446TAN01.1 | AUO | 4.5 | 720×1280 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| LT044MDW7000 | TOSHIBA | 4.5 | 720×1280 |
| PW045XS1 | E Ink | 4.5 | 320×234 |
| PW045XS2 | E Ink | 4.5 | 320×234 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
| TM045YDH27 | Tianma | 4.5 | 480×854 |
