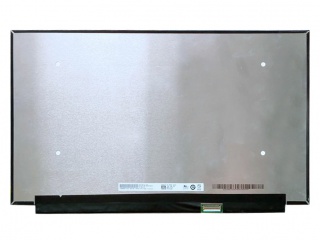

| PartNumber | B156ZAN03.5 |
| Znamka | AUO |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 3840×2160 |
| Sestava | LCM , LTPS TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| proizvajalec | AUO |

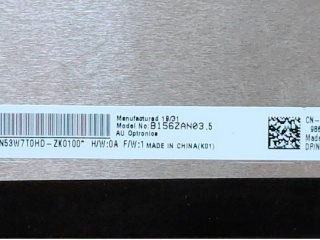

| ime modela | B156ZAN03.5 (AUO35EB) |
| velikost zaslona | 15.6 inch |
| vrsto zaslona | LCM , LTPS TFT-LCD |
| število slikovnih pik | 3840(RGB)×2160 (UHD) 283PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 344.218 × 193.622 (H×V) |
| obris (mm) | 349.22 × 214.21 × 2.6 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Antiglare |
| svetilnost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 30 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | AHVA, Normally Black, Transmissive |
| barvna globina | 16.7M 100% sRGB |
| osvetlitev ozadja | WLED , 15K hours , With LED Driver |
| obrisna oblika | Slim (PCBA Flat, T≤3.2mm) |
| uporablja za | Laptop |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |

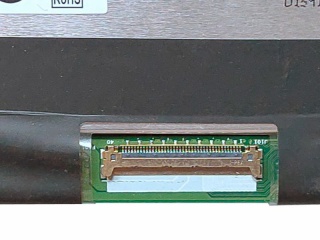

| vrsto signala | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
