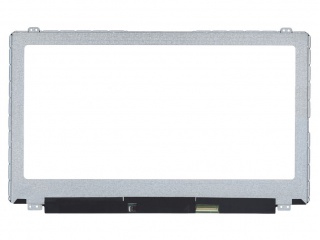

| PartNumber | B156XTT01.2 |
| Znamka | AUO |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 1366×768 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| proizvajalec | AUO |
| velikost zaslona | 15.6 inch |
| število slikovnih pik | 1366(RGB)×768 (WXGA) 100PPI |
| aktivna površina (mm) | 344.232 × 193.536 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 200 cd/m² (Typ.) |
| vidni kot | 45/45/15/35 (Typ.)(CR≥10) |
| dober pogled na | 6 o'clock |
| barvna globina | 262K 45% NTSC |
| obrisna oblika | Slim (PCBA Flat, T≤3.2mm) |
| hitrost osveževanja | 60Hz |
| vrsto signala | LVDS (1 ch, 6-bit) , 40 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

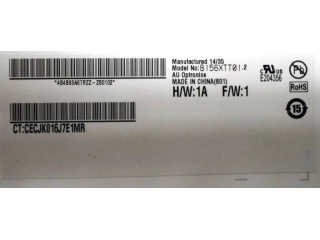

| ime modela | B156XTT01.2 (AUO12EC) |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 364.9 × 224.56 × 5.2 (H×V×D) |
| zdravljenje | Glare (Haze 0%), Hard coating (7H) |
| kontrastno razmerje | 500 : 1 (Typ.) (TM) |
| odgovor | 8 (Typ.)(G to G) ms |
| način dela | TN, Normally White, Transmissive |
| osvetlitev ozadja | WLED , 15K hours , With LED Driver |
| uporablja za | Laptop |
| zaslon na dotik | PCAP, Optical Bonding |
