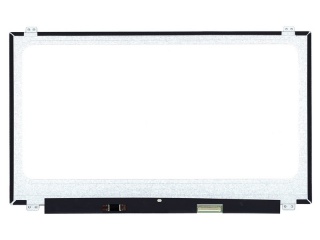

| PartNumber | B156XTN07.0 HWAA |
| Znamka | AUO |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 1366×768 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| proizvajalec | AUO |
| ime modela | B156XTN07.0 HWAA (AUO70EC) |
| velikost zaslona | 15.6 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1366(RGB)×768 (WXGA) 100PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 344.232 × 193.536 (H×V) |
| obris (mm) | 359.5 × 223.8 × 3.4 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Hard coating |
| svetilnost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 500 : 1 (Typ.) (TM) |
| vidni kot | 45/45/15/35 (Typ.)(CR≥10) |
| odgovor | 8 (Typ.)(Tr+Td) ms |
| dober pogled na | 6 o'clock |
| način dela | TN, Normally White, Transmissive |
| barvna globina | 262K 45% NTSC |
| osvetlitev ozadja | WLED , 15K hours , With LED Driver |
| obrisna oblika | Slim (PCBA Flat, T≤3.2mm) |
| uporablja za | Laptop |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN03.1 | AUO | 15.6 | 1366×768 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
