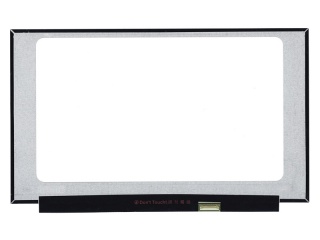

| PartNumber | B156HAN02.8 |
| Znamka | AUO |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| proizvajalec | AUO |
| velikost zaslona | 15.6 inch |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 141PPI |
| aktivna površina (mm) | 344.16 × 193.59 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 250 cd/m² (Typ.) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 262K 46% NTSC |
| obrisna oblika | Slim (PCBA Flat, T≤3.2mm) |
| hitrost osveževanja | 60Hz |
| vrsto signala | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ime modela | B156HAN02.8 (AUO28ED) |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 350.66 × 216.15 × 3.2 (H×V×D) |
| zdravljenje | Antiglare |
| kontrastno razmerje | 800 : 1 (Typ.) (TM) |
| odgovor | 25 (Typ.)(Tr+Td) ms |
| način dela | AHVA, Normally Black, Transmissive |
| osvetlitev ozadja | WLED , 15K hours , With LED Driver |
| uporablja za | Laptop |
| zaslon na dotik | Without |
