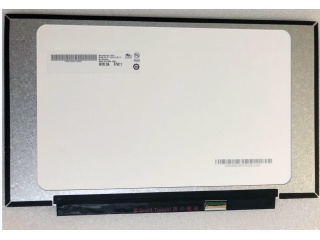

| PartNumber | B140HAN05.4 |
| Znamka | AUO |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LTPS TFT-LCD, LCM |
| Svetlost | |
| CR | 1200:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka | AUO |
| model | B140HAN05.4 (AUO543D) |
| velikost diagonale | 14.0 inch |
| vrsta | LTPS TFT-LCD, LCM |
| slikovnih pik | 1920(RGB)×1080 [FHD] 157PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 309.37(H)×174.02(V) mm |
| obris dim. | 315.87(H)×196.48(V) ×3(D) mm |
| območje okvirja | - |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1200:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | AHVA, Normally Black, Transmissive |
| podpira barvo | 262K NTSC |
| Izvor svetlobe | WLED , 15K hours , With LED Driver |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| namenjen za | Laptop |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
