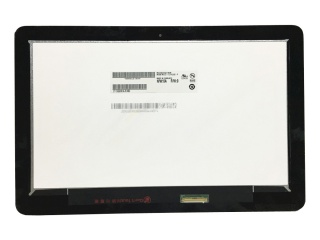

| PartNumber | B116XAB01.3 |
| Znamka | AUO |
| Velikost | 11.6 |
| Aplikacija | Laptop |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD, Assemb |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka | AUO |
| model | B116XAB01.3 (AUO288C) |
| velikost diagonale | 11.6 inch |
| vrsta | a-Si TFT-LCD, Assembly |
| slikovnih pik | 1366(RGB)×768 [WXGA] 135PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 256.125(H)×144(V) mm |
| obris dim. | 284.85(H)×189.84(V) ×4.2(D) mm |
| območje okvirja | - |
| zdravljenje | Glare (Haze 0%), Hard coating (7H) |
| svetilnost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 27 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | - |
| podpira barvo | 16.7M 50% NTSC |
| Izvor svetlobe | WLED , 15K hours , With LED Driver |
| slog oblike | - |
| namenjen za | Laptop |
| hitrost sličic | 60Hz |
| plošča na dotik | On-Cell Touch |
| tip vmesnika | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
