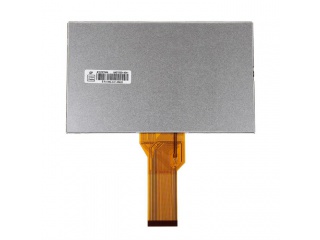

| PartNumber | AT070TN04 |
| Znamka | Innolux |
| Velikost | 7.0 |
| Aplikacija | Automotive Display |
| Resolucija | 480×234 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 300:1 |
| Barve | Full |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TFT |
| znamka | Innolux |
| velikost diagonale | 7.0 inch |
| slikovnih pik | 480(RGB)×234 76PPI |
| aktivno območje | 154.08(H)×86.58(V) mm |
| območje okvirja | - |
| svetilnost | 500 cd/m² (Typ.) |
| smer pogleda | 6 o'clock |
| vidni kot | 60/60/40/60 (Typ.)(CR≥10) |
| podpira barvo | Full color |
| utež | 160g (Typ.) |
| hitrost sličic | 60Hz |
| tip vmesnika | TFT Specific Analog RGB , 26 pins FPC |
| napajanje | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| okolju | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| model | AT070TN04 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 164.9(H)×100(V) ×6(D) mm |
| zdravljenje | Antiglare |
| kontrastno razmerje | 300:1 (Typ.) (TM) |
| odzivni čas | 10/20 (Typ.)(Tr/Td) |
| način delovanja | TN, Normally White, Transmissive |
| Izvor svetlobe | CCFL [1 pcs] , 10K hours , W/O Driver |
| namenjen za | Automotive Display |
| plošča na dotik | Without |
