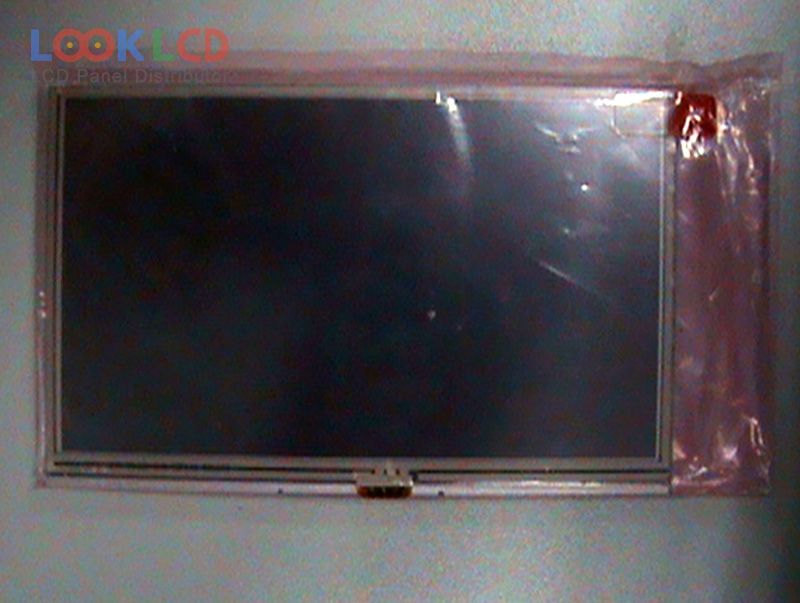

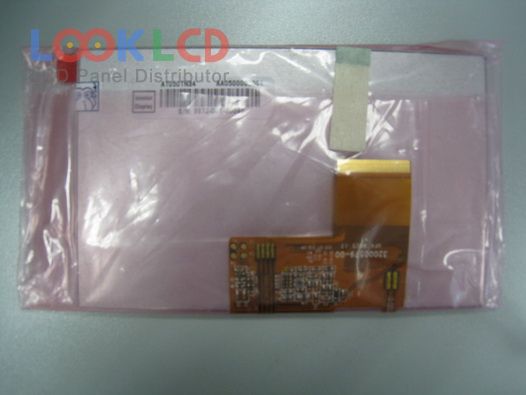

| PartNumber | AT050TN34 |
| Znamka | Innolux |
| Velikost | 5.0 |
| Aplikacija | PND |
| Resolucija | 480×272 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | INNOLUX |
| panelni model | AT050TN34 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.0 inch |
| resolucija | 480(RGB)×272 , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 110.88×62.832 mm |
| oris | 120.7×75.8×4.45 mm |
| površino | Antiglare |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 6S2PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PND |
