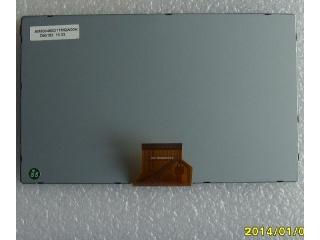

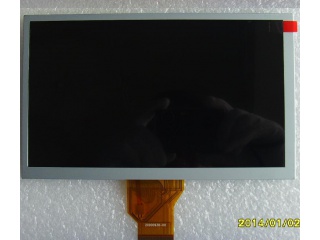

| PartNumber | AM-800480D1TMQW-00H |
| Znamka | AMPIRE |
| Velikost | 8.0 |
| Aplikacija | Industrial Automotiv |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka | AMPIRE |
| model | AM-800480D1TMQW-00H |
| velikost diagonale | 8.0 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 800(RGB)×480 [WVGA] 116PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 176.64(H)×99.36(V) mm |
| obris dim. | 192.8(H)×116.9(V) ×6.7(D) mm |
| območje okvirja | 180.1(H)×103.4(V) mm |
| zdravljenje | Antiglare |
| svetilnost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| smer pogleda | - |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10) |
| način delovanja | TN, Normally White, Transmissive |
| podpira barvo | 262K/16.7M |
| Izvor svetlobe | WLED , 20K hours , W/O Driver |
| utež | 251g (Typ.) |
| namenjen za | Industrial Automotive Display |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
