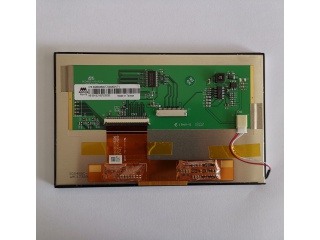

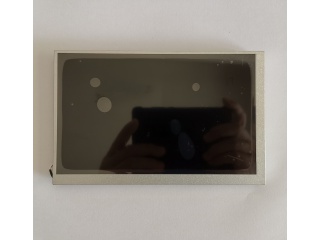

| PartNumber | AM-800480CTZQW-A5H |
| Znamka | AMPIRE |
| Velikost | 7.0 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 800×480 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K |
| Osvetlitev ozadja | 6S5P |
| Vmesnik | LVDS |
| proizvajalec | AMPIRE |
| ime modela | AM-800480CTZQW-A5H |
| velikost zaslona | 7.0 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×480 (WVGA) 133PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 152.4 × 91.44 (H×V) |
| obris (mm) | 165 × 104.4 × 11.61 (H×V×D) |
| površina okvirja (mm) | 15.48 × 93.85 (H×V) |
| zdravljenje | - |
| svetilnost | 1500 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| odgovor | 25 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS, Normally Black, Transmissive |
| barvna globina | 262K 58% NTSC |
| osvetlitev ozadja | 6S5P WLED , 50K hours , With LED Driver |
| masa | - |
| uporablja za | Industrial Outdoor High Brightness |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (1 ch, 6-bit) , 20 pins Connector |
| napajanje z napetostjo | 12.0V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
