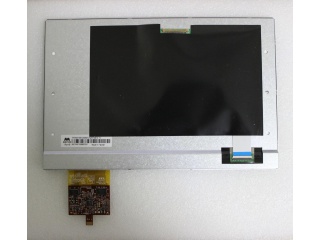

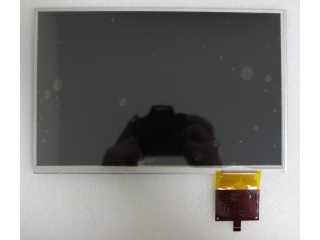

| PartNumber | AM-19201200B2TZQW-T06 |
| Znamka | AMPIRE |
| Velikost | 10.1 |
| Aplikacija | Industrial |
| Resolucija | 1920×1200 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka | AMPIRE |
| velikost diagonale | 10.1 inch |
| slikovnih pik | 1920(RGB)×1200 [WUXGA] 224PPI |
| aktivno območje | 216.806(H)×135.504(V) mm |
| svetilnost | 340 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 53% NTSC |
| utež | - |
| hitrost sličic | 60Hz |
| model | AM-19201200B2TZQW-T06 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 230.12(H)×150.2(V) ×8.26(D) mm |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| način delovanja | AHVA, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 12K hours , With LED Driver |
| namenjen za | Industrial |
| plošča na dotik | PCAP |
