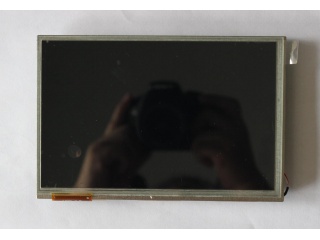

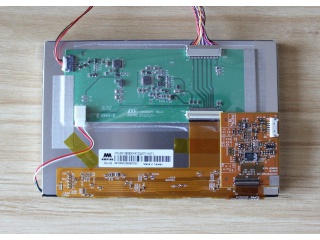

| PartNumber | AM-1280800P4TZQW-T11H |
| Znamka | AMPIRE |
| Velikost | 7.0 |
| Aplikacija | Industrial |
| Resolucija | 1280×800 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 6S4P |
| Vmesnik | |
| znamka plošče | AMPIRE |
| velikost plošče | 7.0" |
| resolucija | 1280(RGB)×800, WXGA, 217PPI |
| prikazno območje | 149.76(W)×93.6(H) mm |
| velikost obrisa | 162.3(W)×107.9(H) ×11.8(D) mm |
| svetlost | 850 cd/m² (Typ.) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 16.7M 50% NTSC |
| pogostost | 60Hz |
| utež | - |
| panelni model | AM-1280800P4TZQW-T11H |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 152.76(W)×96.6(H) mm |
| površino | - |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| način prikaza | SFT, Normally Black, Transmissive |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| tip svetilke | 6S4P WLED , 50K hours , With LED Driver |
| zaslon na dotik | PCAP |
| aplikacija | Industrial |
