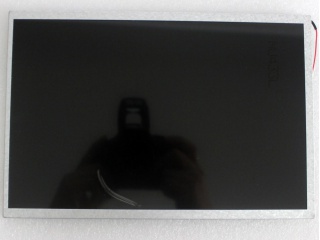

| PartNumber | AM-1280800NGTZQW-17H |
| Znamka | AMPIRE |
| Velikost | 10.1 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1280×800 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 7S6P |
| Vmesnik | LVDS |
| znamka plošče | AMPIRE |
| velikost plošče | 10.1" |
| resolucija | 1280(RGB)×800, WXGA, 149PPI |
| prikazno območje | 216.96(W)×135.6(H) mm |
| velikost obrisa | 231(W)×154.4(H) ×6.2(D) mm |
| svetlost | 1500 cd/m² (Typ.) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 16.7M 45% NTSC |
| pogostost | 60Hz |
| teža plošče | TBD |
| signalni vmesnik | LVDS (1 ch, 8-bit) , 40 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| panelni model | AM-1280800NGTZQW-17H |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 220.76(W)×140.4(H) mm |
| površino | Hard coating |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| način prikaza | IPS, Normally Black, Transmissive |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| tip svetilke | 7S6P WLED , 50K hours , Without Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial Outdoor High Brightness |
