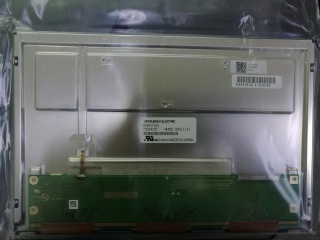

| PartNumber | AA101TA12 |
| Znamka | Mitsubishi |
| Velikost | 10.1 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1280×800 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | 2 |
| Vmesnik | LVDS |
| znamka plošče | Mitsubishi |
| velikost plošče | 10.1" |
| resolucija | 1280(RGB)×800, WXGA, 149PPI |
| prikazno območje | 216.96(W)×135.6(H) mm |
| velikost obrisa | 231(W)×153.5(H) ×9(D) mm |
| svetlost | 800 cd/m² (Typ.) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 262K/16.7M 50% NTSC |
| pogostost | 60Hz |
| teža plošče | 310g |
| signalni vmesnik | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
| panelni model | AA101TA12 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 220.96(W)×139.6(H) mm |
| površino | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| način prikaza | SWV, Normally Black, Transmissive |
| odzivni čas | 12/12 (Typ.)(Tr/Td) |
| tip svetilke | 2 strings WLED , 100K hours , Without Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial Outdoor High Brightness |
