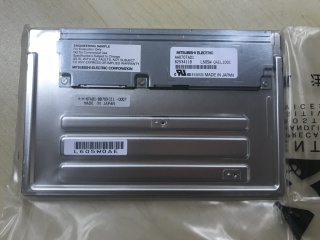

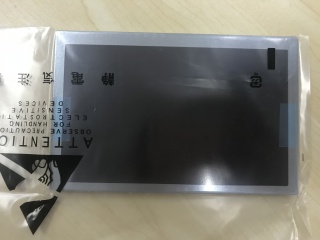

| PartNumber | AA070TA01 |
| Znamka | Mitsubishi |
| Velikost | 7.0 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1280×768 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka plošče | Mitsubishi |
| velikost plošče | 7.0" |
| resolucija | 1280(RGB)×768, WXGA, 214PPI |
| prikazno območje | 151.68(W)×91.01(H) mm |
| velikost obrisa | 169.8(W)×109.7(H) mm |
| svetlost | 1000 cd/m² (Typ.) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 262K/16.7M 49% NTSC |
| pogostost | 60Hz |
| utež | 200g (Typ.) |
| panelni model | AA070TA01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 155.1(W)×94.4(H) mm |
| površino | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| način prikaza | SWV, Normally Black, Transmissive |
| odzivni čas | 12/12 (Typ.)(Tr/Td) |
| tip svetilke | WLED , 100K hours , With LED Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial Outdoor High Brightness Automotive Display |
| AA070MC01 | Mitsubishi | 7.0 | 800×480 |
| AA070MC11 | Mitsubishi | 7.0 | 800×480 |
| AA070ME01 | Mitsubishi | 7.0 | 800×480 |
| AA070ME01-DA1 | Mitsubishi | 7.0 | 800×480 |
| AA078AA01 | Mitsubishi | 7.8 | 800×300 |
| B070EAN01.6 | AUO | 7.0 | 800×1280 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| TFD70W11-F1 | TOSHIBA | 7.0 | 480×234 |
