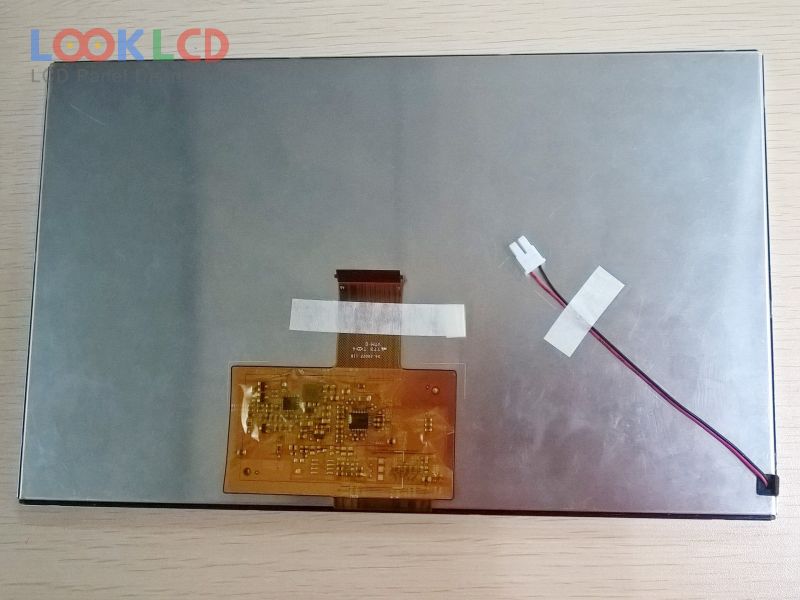

| PartNumber | A101AIE40L0 |
| Znamka | Aptus |
| Velikost | 10.1 |
| Aplikacija | IA |
| Resolucija | 1280×720 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | Aptus |
| panelni model | A101AIE40L0 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1280(RGB)×720 , WXGA |
| način prikaza | AHVA, Normally Black, Transmissive |
| aktivno območje | 223.68×125.82 mm |
| oris | 238.6×148 mm |
| površino | |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC) |
| odzivni čas | 40 (Max.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S3PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 40 pins |
| vhodna napetost | 3.3/3.3V (Typ.)(VDD/AVDD) |
| aplikacija | IA |
